full color video 1080p hd led screen Top quality high refresh rate black SMD Indoor full color led display
Features
1)Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving your maintenance cost.
2)Adopt top high brightness with low power consumption LED lamp,energy saving≥30%, if adopt 28 kinds of main patent technique, entire energy saving ≥50%, environment protection.Pioneer in outdoor mature HD LED Display, all advanced specifications 2 years earlier than others, successful cases around the world.
3)Adopt dual service of black kingkong series among core techniques, free back service path for all kinds of installation surroundings.Broadcast level color scale, color temperature and brightness adjustable intelligentizedly, smooth color, high color ratio, nature pictures.
Specifications
| Pixel Pitch | 2.5mm |
| LED Model | SMD2020 |
| Pixel Configuration | SMD 3 in 1 1R1G1B |
| Module size(W×H) | 160mm*160mm |
| Module resolution(W×H) | 64×32 |
| Cabinet resolution(W×H) | 192*96 |
| Module configuration(W×H) | 2×2 |
| Cabinet Size(W×H×D) | 400mm×480mm×60mm |
| Weight | 5.8Kg/cabinet;48.3Kg/m2 |
| Cabinet Material | Die-casting Aluminum |
| Installation Type | Fixed installation |
| (5)Display Parameter |
| Density | 160,000pixels/m2 |
| Brightness | 600cd/m2~1200cd/m2 Adjustable |
| View angle | 160°/160° |
| View distance | 2.5m~50m |
| Flatness | ≤0.2mm |
| Wavelength tolerance | <3% |
| Brightness uniformity | ≥97% |
| Chroma uniformity | ±0.003 within Cx Cy |
| Contrast | 3000:1 |
| Ingress Protection(F/R) | IP20/IP41 |
| Application | Indoor |
| (6)Control System |
| Grayscale level | 14bit |
| Drive Mode | Constant current |
| Scan Mode | 1/16 |
| Refresh Rate | ≥2000Hz |
| Frame | 50/60Hz |
| Color Temperature | 3000K~9500K Adjustable |
| Brightness control mode | Manual/Auto/Remote control |
| Calibration | Brightness calibration Color calibration |
| Control Type | Manual/Auto/Remote control |
| Control distance | <100m | Cat 5E Net cable |
| 100m~500m | Multimode fiber |
| 500m~10Km | Single mode fiber |
| Input signal | AV/S-Video/VGA/DVI/ HDMI/SDI/DP |
| Software Interface | Windows XP/7/8 |
| (7)Operation parameter |
| Max. power consumption | ≤650W/m2 |
| Ave. power consumption | 180W/m2~240W/m2 |
| Working voltage | AC: 100V~240V(50/60 Hz) |
| Signal to noise ratio | ≥47 |
| Malfunction dot rate | ≤3×10-4 |
| MTBF | ≥10000 hours |
| LEDLifetime | 100,000 hrs (typical), 50% brightness |
| Operating temperature | -10℃~40℃ |
| Operating humidity | 10%~90%RH |
Product Details

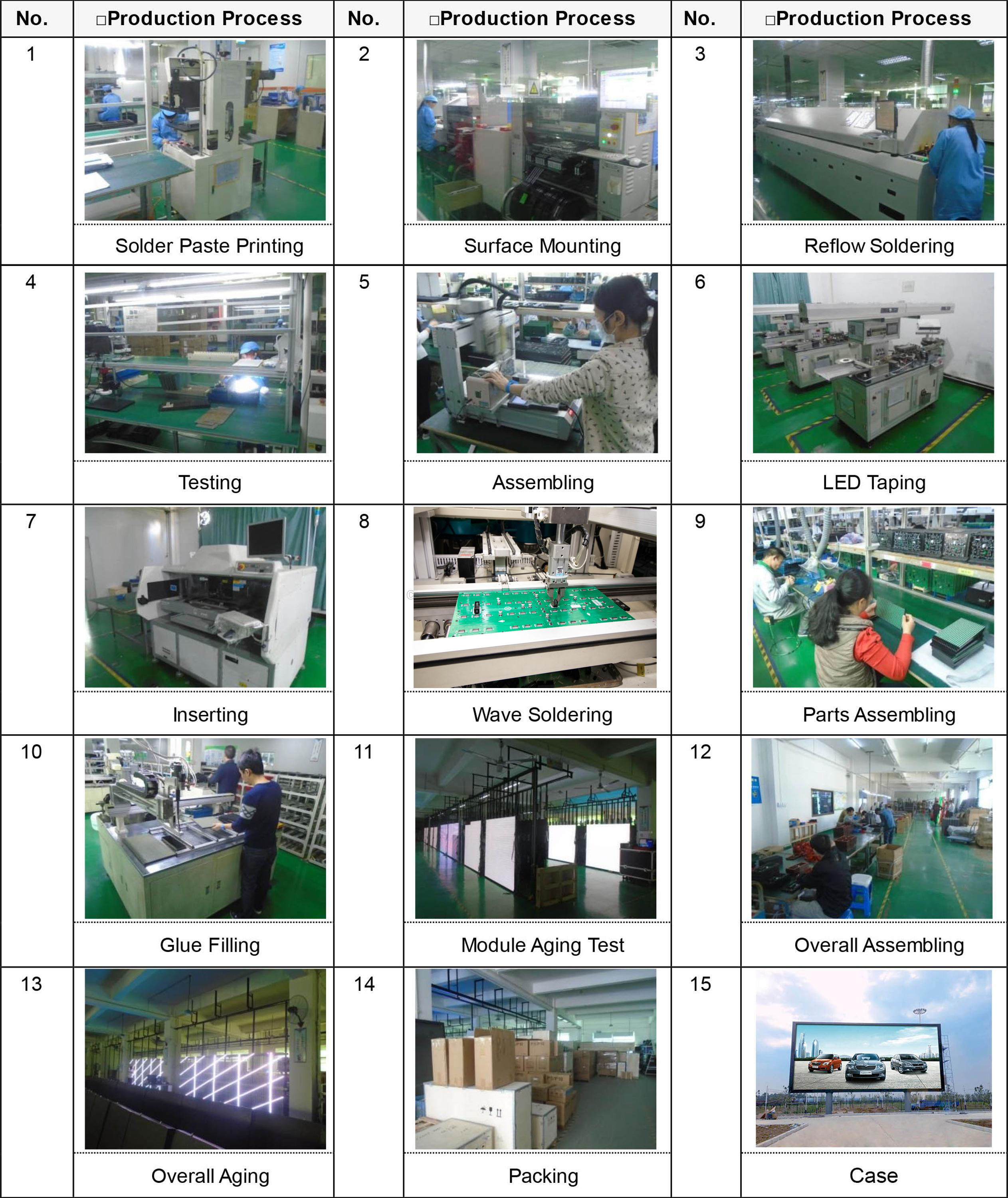

Factory
Package
Our Service
1. Warranty
1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so on.
2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other information such as flight box, structure
