SCX LED permanent install portable 512x512mm cabinet full color SMD1515 front service P2 led screen indoor
1. Pixel pitch 2mm, SMD 3-in-1 (SMD1010 LEDs), HD nice videos, wide viewing angle.
2. 512x512mm Die-casting aluminum LED panel, nice appearance and good quality.
3. super thin, light weight,only 10kg per LED panel, with handles and fast locks, easy to install.
4. seamless and flatness to ensure high quality video effect.
5. support VGA,DVI,HDMI,TV programs,VCD,DVD,live show,etc.
6. flightcase package, easy to take the LED display to different places according to your need.
7. suitable for stage rental, event show, exhibition, tv studio, commercial advertising, etc.
♦ Product specification
| indoor SMD P2 |
| Lamp size | 2121 |
| Resolution/mm | 2 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 250000/m² |
| Module resolution | 128x64 |
| Module size/mm | 256x128 |
| View distance | ≥1m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >2500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/13 |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ |
| Maximum power:/㎡ | <1100W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Our case

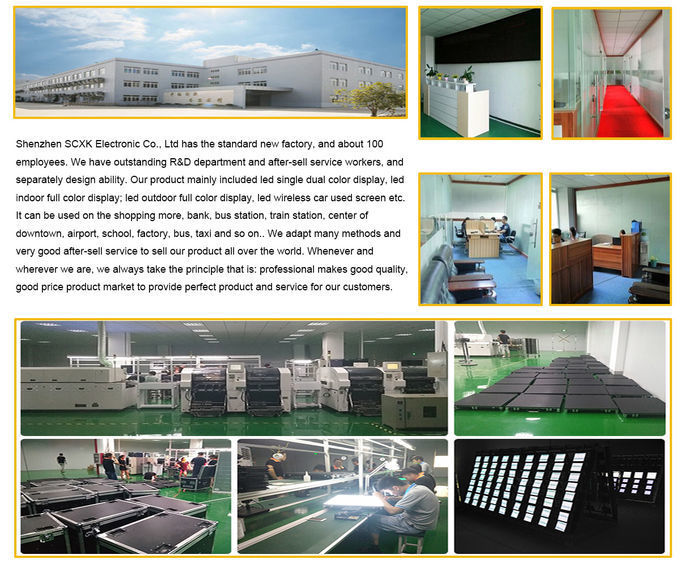

♦ About us:
Established in 2005, clients cover more than 50 cuntries, Mainly USA, Europe, dubai, north and mid america, south america, asia. As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, we have a professional high-quality technical R & D team,rich experienced engineers and professional product development and design engineers,excellent marketing team, pre and after-sales 24 hours service. Even face with harshest environment,we can carefully choose different suitable materials and make the best offer.

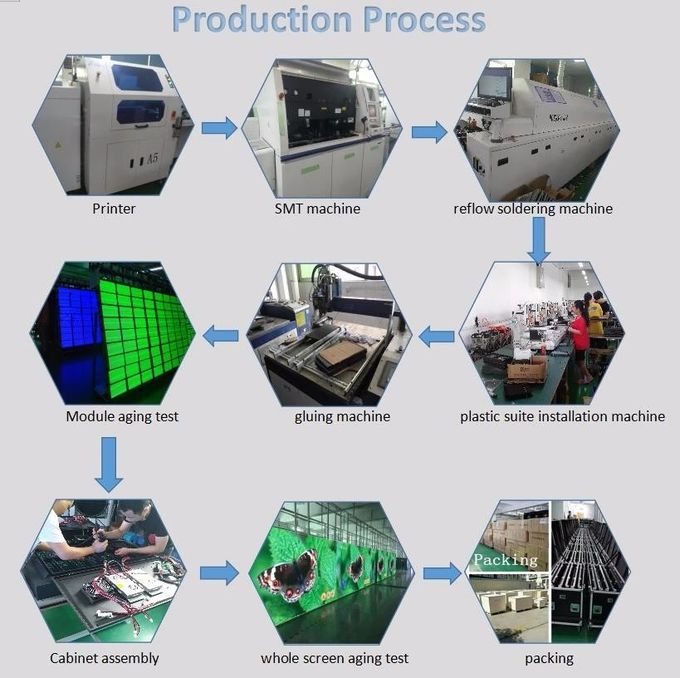

Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

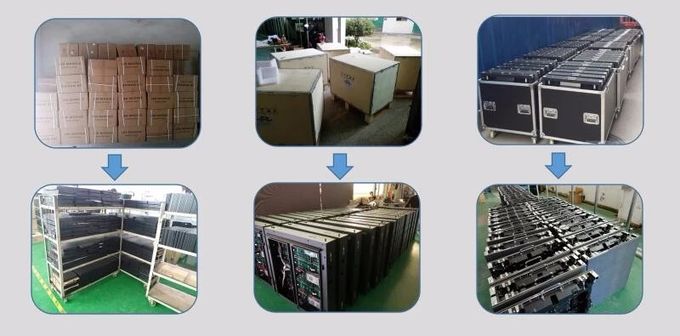

♦ Packaging and shipping
Wooden case or flight case package are available.
Our Service
Pre-sales service :
Our team design and make solutions based on different requirements from different customers, what you think is what we can do.
After-sales services:
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We provide one professional engineer to one customer to keep fastly reply.
Installation Service:
1. We provide detailed CAD drawing to customer for preparing metal structure.
2. We could dispatch our engineer to your place , guide installation and free training.
3. Special designs have special solutions; we will make perfect solutions to satisfy all customers' requirements
FAQ
1. Is the product customizable? Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
2. Do you test all your goods before delivery? Yes, we have 100% test before delivery.
3. How about your delivery time? Generally, it will takes about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. What is your terms of payment? T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
5. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
