Full color P4 p5 p6 P8 P10 Outdoor SMD led display/ Led video wall Screen Rental cabinet 960X960mm
Service
1. Two years warranty for the whole system except human factor and force majeure
2. One year quality warranty, lifetime maintenance, and guarantee the maintenance time in contract.
3. During the warranty period: solve problems for users through the phone, fax or E-Mail. Update the software free of charge.
4. As to the product quality problems caused by design, manufacture, installation technology, material, the replacement and maintenance are free. The system damage caused by force majeure(flood, fire, earthquake, war and so on) as well as users) man-made disturbance(construction, cleaning ) should be coordinate by both sides to solve.
Specifications

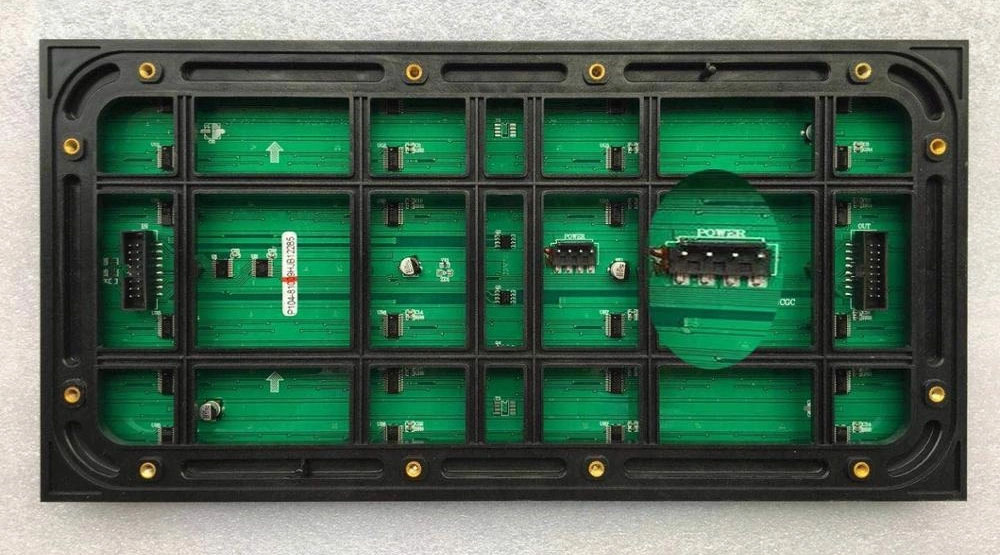

| Unit Module | Item | Parameter | Parameter |
| Module number | P10 | P8 |
| Moule size | 320mm x 160mm | 256mm x 128mm |
| Pixel pitch | 10mm | 8mm |
| Pixel density | 10000dots/sqm | 15625dots/sqm |
| Pixel configuration | 1R1G1B | 1R1G1B |
| Package mode | smd 3535 | smd3535 |
| Pixel resolution | 32x 16 dots | 32x16dots |
| Max power consumpion | 28w | 28w |
| Module thickness | 14.85mm(without magnet) | 14.85mm(without magnet) |
| 27.15mm(with magnet) | 27.15mm (with magnet) |
| Module weight | 0.504kg | 0.7kg |
| Driver method | constant drive | constant drive |
| Driver method | 1/4 scanning | 1/4 |
| Port type | HUB75 | HUB75 |
| Brightness | >7000cd/sqm | >7000cd/sqm |
| Bracket | Size | 320mm x 160mm | 256mm x 128mm |
| Unit Cabinet | Cabinet size | 960mm x 960mm | 1024mm x 1024mm |
| Quantity of module | 18pcs | 32pcs |
| Power supply | 5v/40A x 5pcs | 5V/40A x5pcs |
| Thermal discharge | 2pcs cooling fans | 2pcs cooling fans |
| Pixel per cabinet | 96 x 96 dots | 128x128 dots |
| Best viewing distance | 5m-100m | 5-100m |
| Best viewing angle | 160°(w)120°(H) | 160°(w)120°(H) |
| Temperature | storage:-35℃- +85℃ | storage:-35℃-+85℃ |
| working:-20℃- +50℃ | working:-20℃-+50℃ |
| Opration humidity | 10%-95% | 10%-95% |
| Thickness | 145mm | 145mm |
| Power | Working voltage | 220V±10% | 220V±10% |
| Averange power consumption | 140W/sqm | 140W/sqm |
| Max. power consumption | 420w/sqm | 420W/sqm |
| Current | <20mA(single LED) | <20mA(single LED) |
Workshop
Projects
FAQ
Q1: What is the lead time?
A: Sample:2-5days; small quantity: 15-20days; large order: 20-25days; according to quantity.
Q2: Is it all right to make customers’own brand name?
A: That’s all right to make your own brand name.
Q3: Is it available for samples?
A: yes, of course. sample is free, and you may pay freight cost. that would be reasonable.
Q4: Is there a middle man draining your profit?
A: Get rid of them,it’s information age.Factory Directly Supply,Provide good price, high-quality, quick-delivery, best quality service.
