1. Comprehensive solution delivery of series-related products.
2. High quality products which allow they to scream.
3. Custom-made service.
4. Above one year free warranty, and support renewals extended.
5. Free installation guidance and technical support.
6. Cover more than 100 countries and regions in the world with products and technical support.
♦ Product specification
| indoor SMD P2.5 |
| Lamp size | 2121 |
| Resolution/mm | 2.5 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 160000/m² |
| Module resolution | 64x64 |
| Module size/mm | 240x120 |
| View distance | ≥0.5m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >2500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/4 |
| Frame rate | 60Hz |
| Refresh frequency | >4200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ |
| Maximum power:/㎡ | <1000W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check,
temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

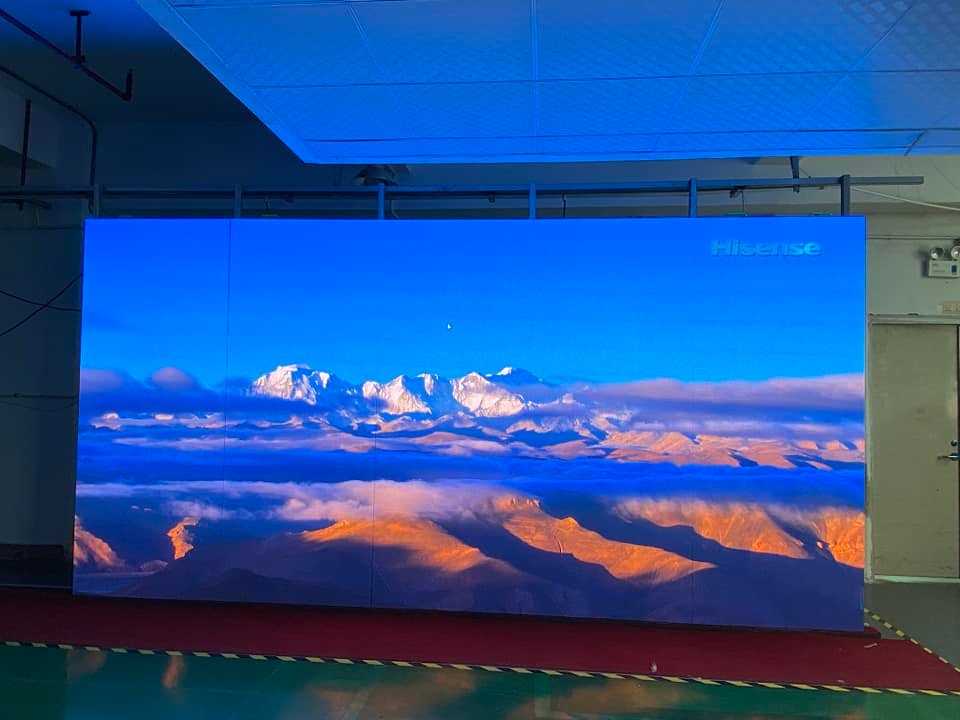

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other requireed services such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.
After-sale service:
1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 2years
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
