Rental Led Display P6 P3 Die-casting Cabinet easy install 3 years warranty
1. With simple assembly/disassembly and compact packaging, it is extremely easy to transport, and saves time and labor.
2. deliver crystal clear images and are perfect to display high-definition images and videos for stage performances and television studios.
3.The die-cast aluminum casing is created with high-precision machining, ensuring complete panel flatness.
With a special connector design it is easy to reduce gaps while installing, creating a perfect display.
4. The use of a high-quality aluminum alloy with a fanless thermal design solves the heating problem, reduces noise and power consumption, and minimizes panel weight for easy installation
| SCX-P6 |
| Pixel pitch | 6mm | LED encapsulation | SMD3528 |
| Module resolution | 32×32 dots | View angle | 140°/140° |
| Module size | 192×192 mm | Working environment
temp | Temp: -20°C to+60°C
Humidity: 35%~85% |
| Pixel density | 27,778 dots/m² | Working voltage | 110 V±15%
or 230 V±15% |
| Pixel configuration | 1R1G1B | Driving method | 1/8 scan,
constant current |
Optimun Viewing
distance | >6 m | Gray level | RGB/8192/14bit |
Max power
consumption | 850 W/m² | Display function | Graphics,Animation,
and video |
| Brightness | >2500 CD/m² | Refresh rates | > 800Hz |
| Life span | >100,000 hours | Blind spot rate | < 0.00001 |
| Outdoor Die casting Aluminum Rental SMD LED Display 640mm x 640mm |
| Pitch/mm | P6 | P6.67 | P8 | P10 |
| Module size/mm | 192x192 | 320x160 | 256x128 | 320x160 |
| Density of pixel/(dots/m2) | 27,778 | 22,478 | 15,625 | 10,000 |
| Led encapsulation | SMD 3535 | SMD3535 | SMD3535 | SMD3535 |
| Resolution of module | 48X48 | 48X48 | 40X40 | 32X32 |
| Optimum viewing distance | 6-50m | 7-75m | 8-75m | 10-150m |
| View angle / ° | 160 H,120 V | 160 H,120 V | 160 H,120 V | 160H,120V |
| Max power consumption/W/M2 | 1000 | 1100 | 1000 | 1000 |
| Size of cabinet/mm | 576x576 | 640X640 | 640X640 | 640X640 |
| Resolution of cabinet | 96x96 | 96x96 | 80x80 | 64x64 |
| Weight of cabinet/kg | 11 | 12 | 12 | 12 |
| Driving method | 1/8 scan constant current | 1/8 scan constant current | 1/4 scan constant current | 1/4 scan constant current |
| Refresh rate Hz/S | ≥2000 | ≥2000 | ≥2000 | ≥2000 |
| Luminance of white balance | ≥8000 nits | ≥7500 nits | ≥7000 nits | ≥6500 nits |
| Operation of Environmental Temperature/°C | below 30 to above 50 |
| Working vlotage | 110-220 VAC/+/- 10% |
| Grey scale/color | displaying colors≥16.7M(synchronized) |
| Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) |
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
| Control system | linsn(sending card,receiving cards and Hubs) |
| Average of non-failure life | >50,00h |
| Life span | >100,000h |
| Defect dot rate | <0.0001 |

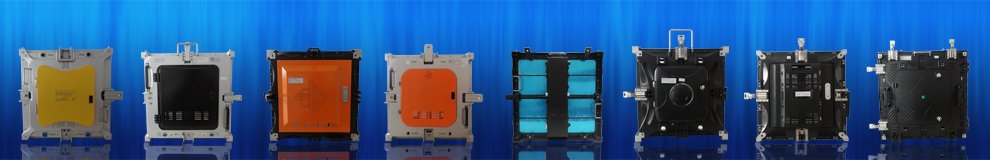

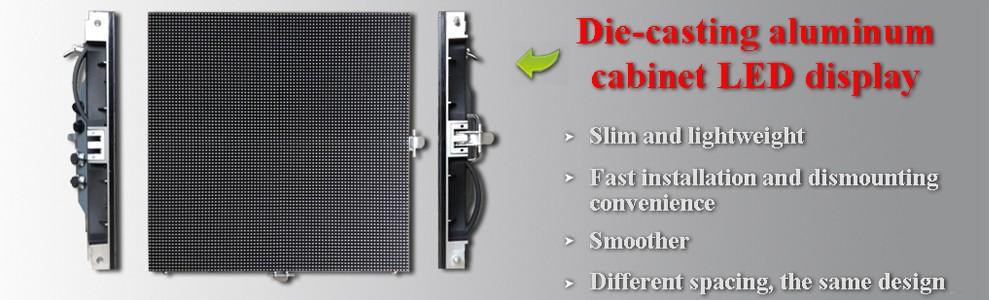

Indoor and outdoor die-casting rental aluminum cabinet:
1) Lightweight
2) Seamless connection
3) Ultra thin
4) Easy to maintain
5) Easy to install
6) Noiseless
7) Ghost Cancelling
8) High refresh rate
9) Low brightness and high gray scale
10) Low power consumption
Production process
Free training:
3 days on-site complete technical training in our Shenzhen factory or internet on-line teamviewer via remote control or skype on line communication,what's more,we have valuable users' manual to guide for debugging and installing successfully.
Installation service:
The seller should provide on the spot installation instruction service for the buyer, including:
A, To check whether the bracket and frame are in conformity with the technical requirements of the structure scheme the seller provided
B, To instruct the buyer’s technicians to install the LED module cases and connection among those cases
C, To experiment and adjust the whole panel, examine and repair the defective devices, guarantee panel in secure operation.
D, To train the buyer’s technicians.
For spot installation and train in foreign country, the service is 100 usd/day, and the buyer must pay our technician’s living and traffic fee during the installation period.
4. MOQ:1PC
Our company information:
SCXK se ha especializado en campo del LED desde 2005. Somos un fabricante principal un abastecedor de la solución técnica del color lleno indoor un ledisplay al aire libre, exhibición LED del alquiler, módulos llevados donde en Shenzhen ctiy, provincia de Guangdong, China.
